Beskrivning

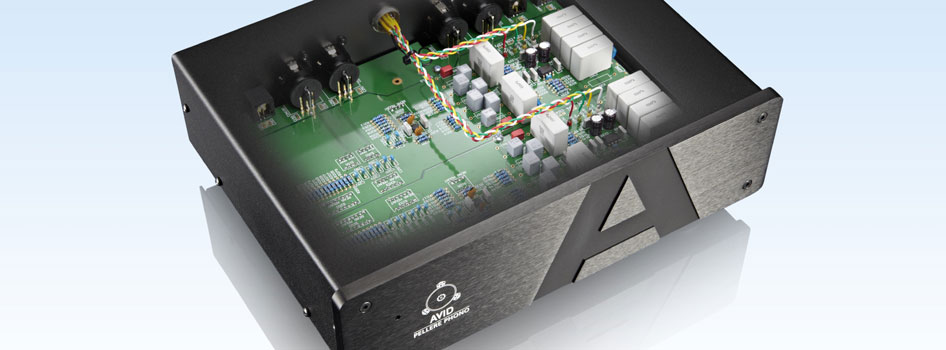

Avid Hifi Pellere är ett fullt balanserat riaa-steg byggt av dom finaste komponeterna.
EGENSKAPER
Noise
|
: < -81dB MM <-67dB MC
|
Distortion
|
: < 0.001%
|
RIAA
|
: 5Hz – 70kHz +/-0.5dB
|
Gain
|
: 40dB – 50dB – 60dB – 70dB
|
Resistance loading
|
: 10R – 30R – 100R – 300R – 500R – 1k – 5k – 10k – 47k
|
Capacitance loading
|
: 100pf – 200pf – 500pf – 1.5nf – 10nf – 20nf
|
Power supply
|
: Regulated with 300va transformer
|
Voltage input
|
: 100-240vac 50/60Hz 10 watts max. (depending on region)
|
Dimensions
|
: 290 x 240 x 100mm (WxDxH)
|
Net weight
|
: Control unit – 3.8Kg (8.4lb) PSU – 6.4Kg (14lb)
|
Packaging
|
: 360 x 310 x 290mm (WxDxH)
|
Shipping weight
Garanti
|
: 12.0Kg (27lb)
: 2År
|
