Beskrivning

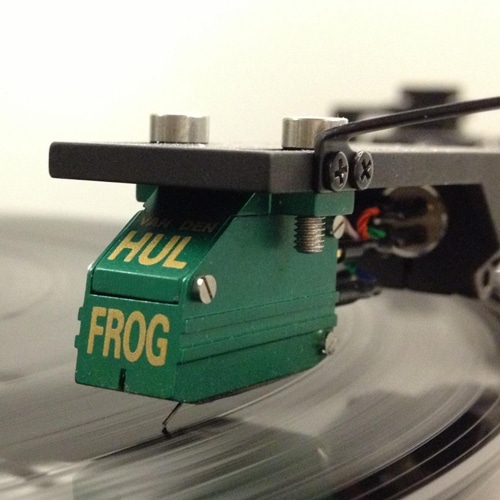

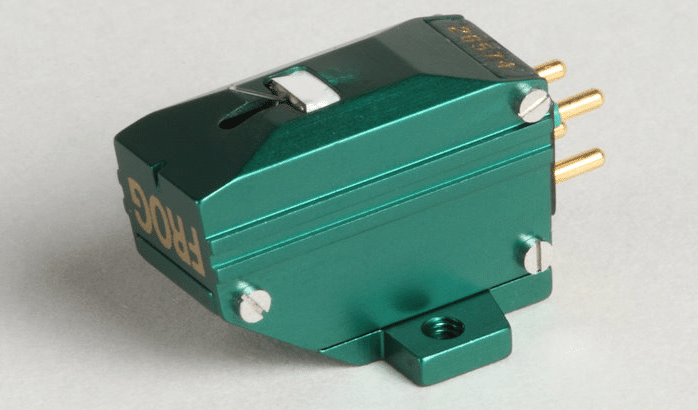

MC-Frog är en handbyggd MC (Moving Coil) från Van Den Hul, finns i 3olika versioner.
- Standard Version:
Output 0.65 mV/channel, matched crystal copper-wire coils and extra magnet modification - Gold Version:
Output 0.65 mV/channel, matched crystal gold-wire coils and extra magnet modification - High Output Version:
Output 2.25 mV/channel, matched crystal copper-wire coils and extra magnet modification
Produktionstid för att göra en MC-One Special är ca 2veckor.
EGENSKAPER
stylus shape | VDH – IS |
stylus radii | 2 x 85 Micron |
frequency range | 5 – 55.000 Hz |
tracking force | 13.5 – 16 mN |
static compliance | 35 Micron/mN |
tracking ability | 70 – 80 Micron |
output voltage |
a) 0.65 mV RMS |
channel unbalance | < 0.3 dB |
channel separation |
> 35 / > 30 dB |
stylus tip mass | 0.32 Milligram |
system weight | 8.2 Gram |
vertical tracking angle | 22 Degrees |
load capacitance | see (*2) |
load impedance |
a) 500 (> 200) Ohm |
eff tone arm mass | 6 – 10 Gram |
moving coil resistance Garanti |
a) 21 Ohm +/- 10% 2år |
