Beskrivning

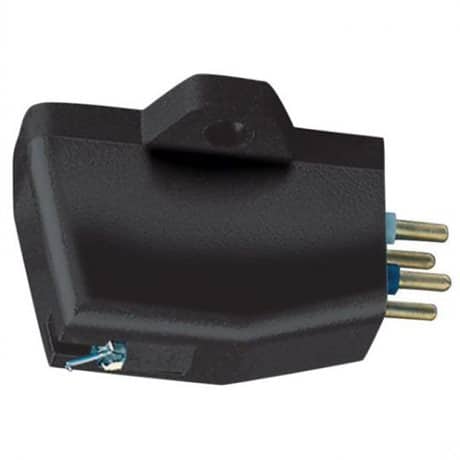

Goldrings MC-Serie.
Kropp i Pocan. Neodymium magnet. Nål med Gyger 2-slipning. 0,5 mV +/- 1dB
Eroica LXär Goldring instegs MC pickup som är en “low output” pickup.
LX med lite mjukare ljudåtergivning med bra dynamik och detaljskärpa.
The Eroica uses a neodymium (NdFeB), rare-earth, permanent magnet the strongest type commercially available. This gives us the opportunity to shorten the magnetic circuit in the cartridge and still achieve the required field strength in the pole shoe gap. In this way the overall mass of the cartridge has been reduced to help improve trackability and make it compatible with a wider range of tonearms.
The Eroica uses a strong one piece body which holds the fixed parts securely in place. Made from a special type of ultra-rigid, glass reinforced polyester called Pocan®, the body can be tightly bolted to the head shell for maximum efficiency and optimum sound quality. Because Pocan® has a high strength-to-mass ratio, the overall mass of the Elite is kept below 6.0 g.
EGENSKAPER
-
- Frequency Response
-
- 20 Hz – 22 kHz ± 3 dB
-
- Channel Balance
-
- within 1 dB @ 1 kHz
-
- Channel Separation
-
- better than 25 dB @ 1 kHz
-
- Sensitivity
-
- 2.5 mV ± 1 dB, 1 kHz @ 5 cm/sec
-
- Static Compliance
-
- 18 mm/N
-
- Equivalent tip mass
-
- 0.6 mg
-
- Vertical Tracking Angle
-
- 24 °
-
- Stylus Radius
-
- Gyger II
-
- Stylus Type
-
- Non-Replaceable
-
- Load Resistance
-
- 47 kΩ
-
- Load Capacitance
-
- 100 – 500 pF
-
- Internal Inductance
-
- 0.2 mH
-
- Internal Resistance
-
- 77Ω
-
- Cartridge Mass
-
- 5.5 g
-
- Cartridge Mass (inc. fixings)
-
- 6.6 g
-
- Fixing Centre
-
- 0.5 ” (12.7 mm)
-
- Playing Weight
-
- 1.5 – 2.0 g (1.7 g nom.)
