With the V2 series of MM cartridges, Clearaudio set new standards in the technical parameters of impedance, inductance, load capacitance and sensitivity.
Ongoing research and development have enabled us to attain near perfect balance of the stereo channels, reduce distortion to vanishing levels and increase output level with a flat frequency response to provide a vivid and enthralling musical performance.
All of our MM V2 cartridges deliver the following enhancements over earlier models:
A resonance-optimized ebony housing for less colouration and more natural sound
More powerful magnets producing greater dynamic range
Higher output voltage for lower noise levels.

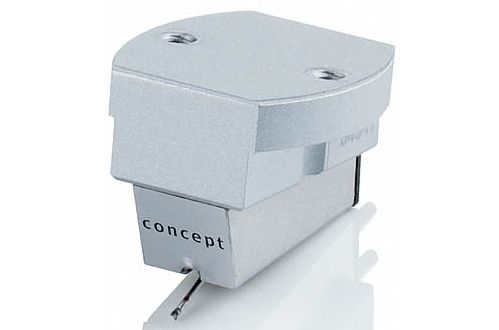

Technical specifications “”””””MM”””””” Frequency Response: 20 Hz – 20 kHz Output voltage (1kHz, 5cm/s): ? 3.3 mV Channel separation (1kHz): > 20 dB Channel balance (1kHz): ? 2 dB Tracking ability: 80 µm
Tracking ability (recommended 1,8 -2,6 g): 2.0 gram Coil impedance (1kHz): 0.66 k? Coil inductance: 0.42 H Load resistance: 47 k? L
oad capacitance: 100 pF Cantilever: Aluminium Weight: 8.4 gram Manufacturer’s guarantee*: 2 years

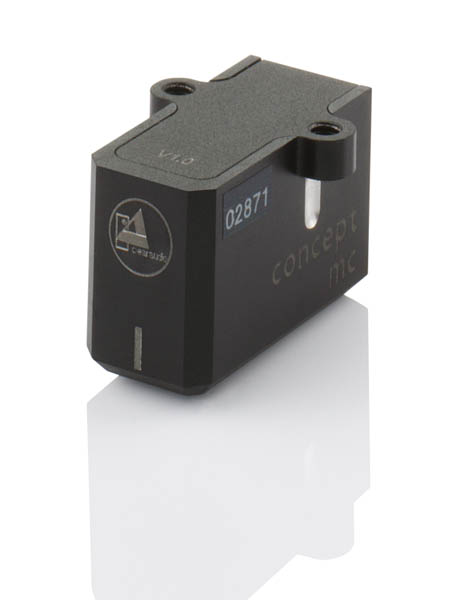

Technical specifications “”””””””””MC”””””””” Cartridge weight: 8.0 gram
Stylus shape: Micro Line Cantilever: Boron Coil material: OFC (oxygen-free copper) Compliance: 9/9 µ/mN
Recommended tracking force: 2.0 gram (+/- 0.2 gram) Crosstalk: > 30 dB Channel difference: < 0.5 dB Output voltage: 0.42 mV at 5 cm/s
Cartridge impedance: 11 ?
Cartridge body: Aluminium-magnesium alloy with ceramic surface layer
Manufacturer’s guarantee*: 2 years
