Beskrivning

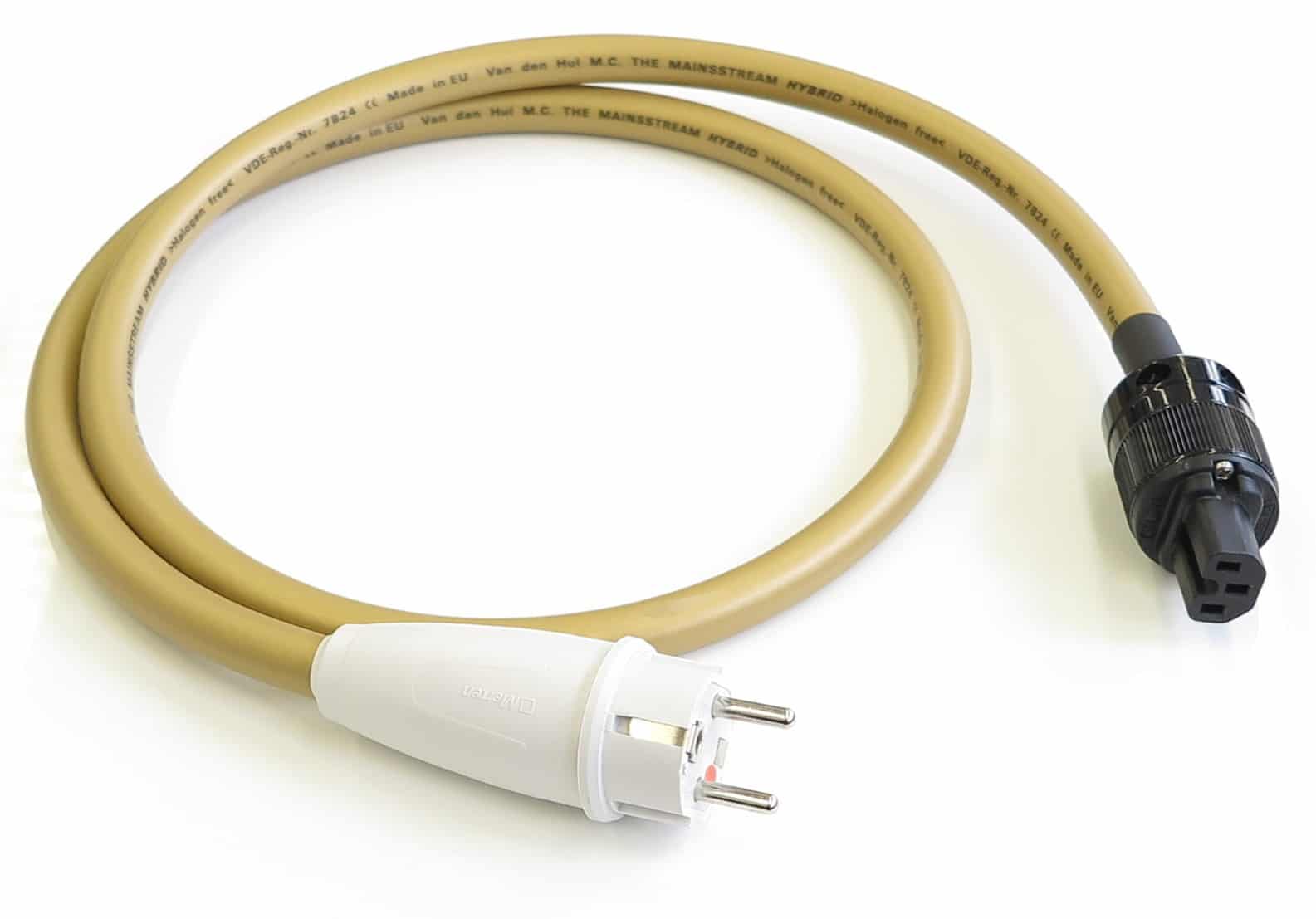

Van Den Hul Mainsstream Hybrid är en nätkabel som är främst framtagen för Hifi produkter där du vill få så lite yttre störningar som möjligt.
Är mycket bra skärmad med HYBRID: High purity dense Silver coated high purity OFC + Linear Structured Carbon ® saturated layer(s)
Finns med olika kontakter som C15 (standard), C19 (16amp)
EGENSKAPER
material | Hybrid |
product category | powercords |
cable type | Screened 7 core |
conductor material | HYBRID: High purity dense Silver coated high purity OFC + Linear Structured Carbon ® saturated layer(s) |
design purpose | Low noise AC power distribution cable for high-end audio, video and professional equipment use. |
eff conductor | Cores: 0.56 mm² / AWG 19.6 / 7 Ground: 1.69 mm² / ~AWG 15 / 84 Screen: 7.92 mm² / ~AWG 8 / 252 |
external diameter | 15.0 mm. |
jacket colors | Gold tone |
resistance | Cores: 3.0 Ohm/100 m. Three cores combined = Lead or Neutral: 1.0 Ohm/100 m. Ground: 1.0 Ohm/100 m. Screen: 0.22 Ohm/100 m. |
insulation |
Cores: HULLIFLEX ® 4; Jacket: HULLIFLEX ® 4 / 750 Vrms min. / 5 kV |
connector types |
Mains side: Country specific grounded mains plugs with 15 mm. cable inlet. |
standard sales units |
With our large IEC320/C15 type 15 amp IEC power connector at the equipment side and a country specific grounded mains plug at the mains side: In 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5 and 5.0 m. standard lengths; Larger lengths: on customer specification. |
