Beskrivning

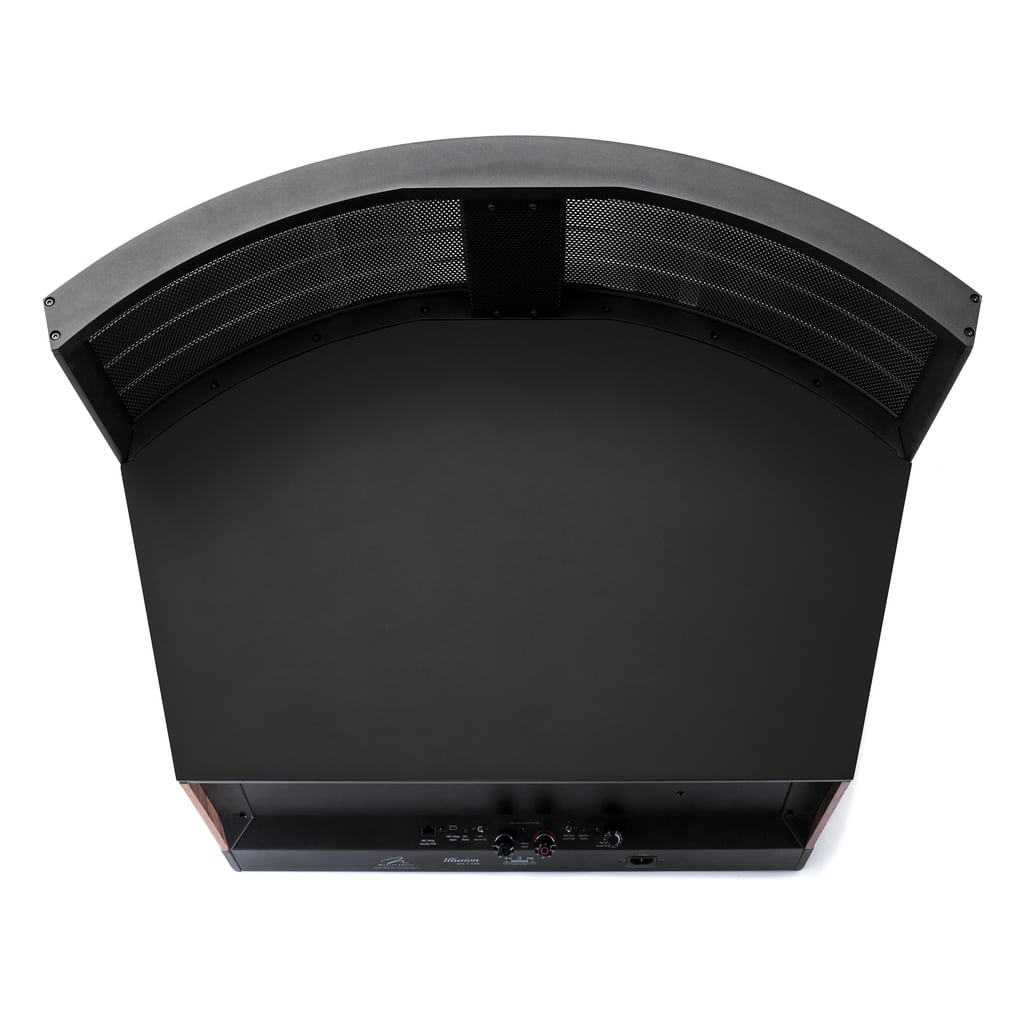

Martin Logan Illusion ESL C34A är kanske en av världens bästa centerhögtalare!?

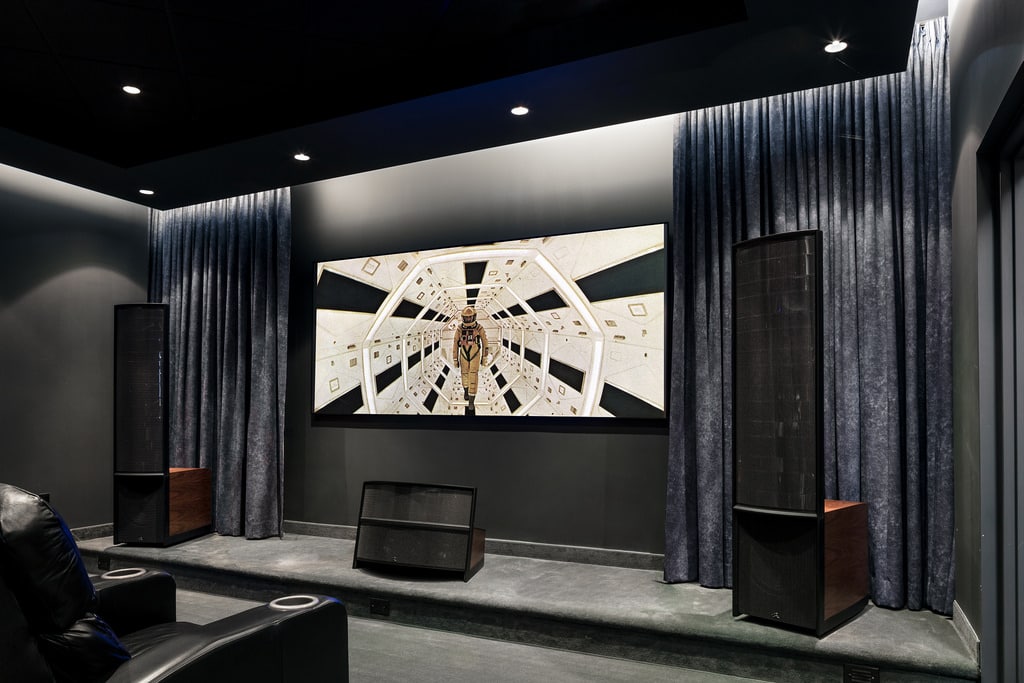

För dig som verkligen vill få det bästa ur din hemmabio där centerkanalen är bland det viktigaste i en seriös biosetup.

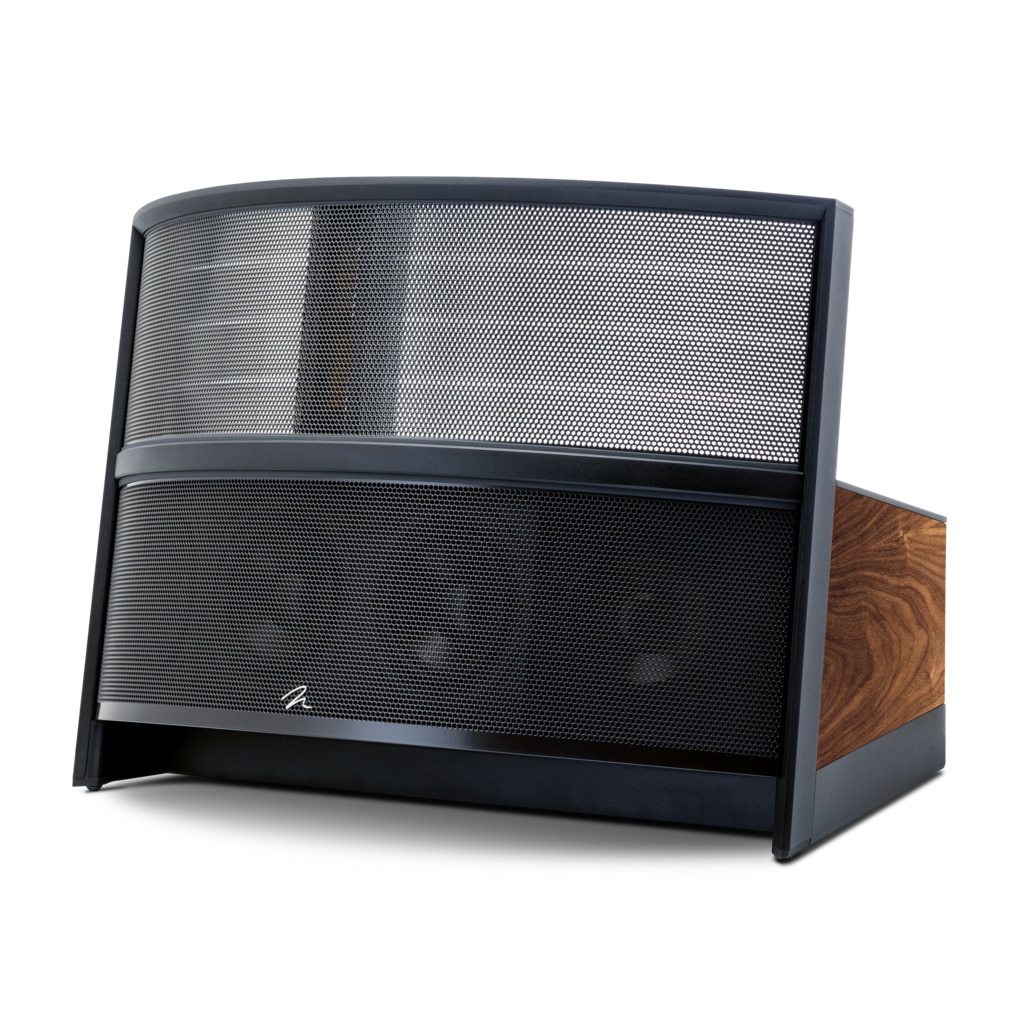

Detta är en 41 kg tung elektrostatcenterhögtalare som passar golvstående eller på en lågbänk med hela 4×6.5″” aktiva baselement, som kan mät-EQ kalibreras via Anthem´s ARC-system (tillval).
Den 34.5″” x 8″” stora XStat CLS elektrosat-panelen samlirar med 2st Folded Motion XT-diskant, som tillsammans ger en enastående närvarokänsla.
Finns i fyra olika standardfinishar.
EGENSKAPER
|
Frequency Response
|
4523,000 Hz ±3dB
|
|
Horizontal Dispersion
|
30°
|
|
High Frequency Transducer
|

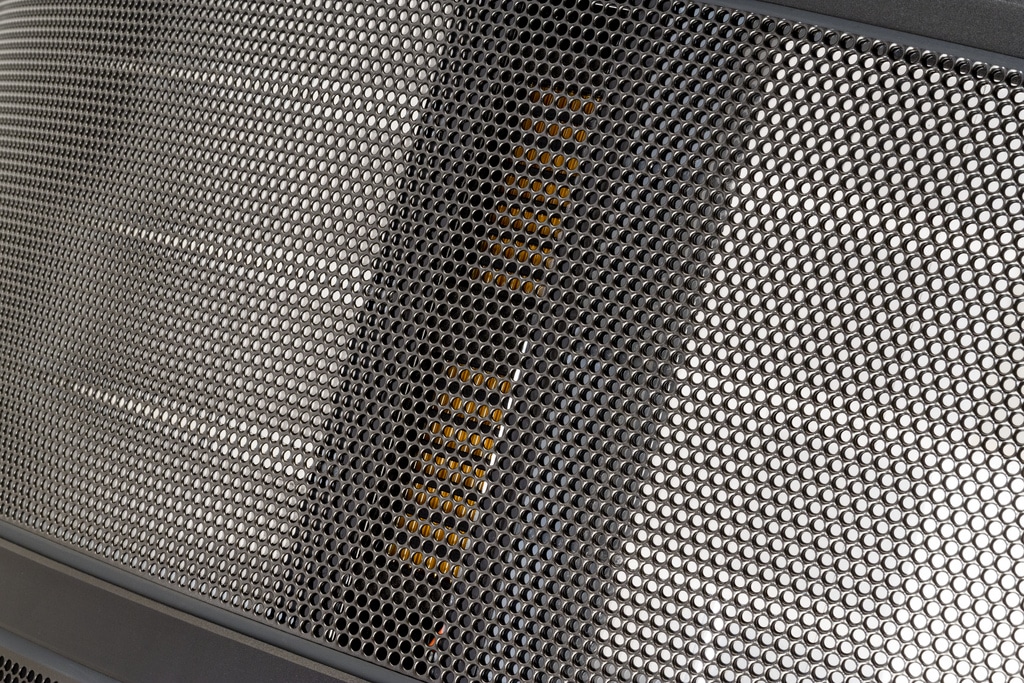

Two 1.25″” x 2.4″” (3.2cm x 6.1cm) Folded Motion XT Transducers with 4.5″” x 2.75″” (11.4cm x 7cm) diaphragm.
|
|
Mid Frequency Transducer
|

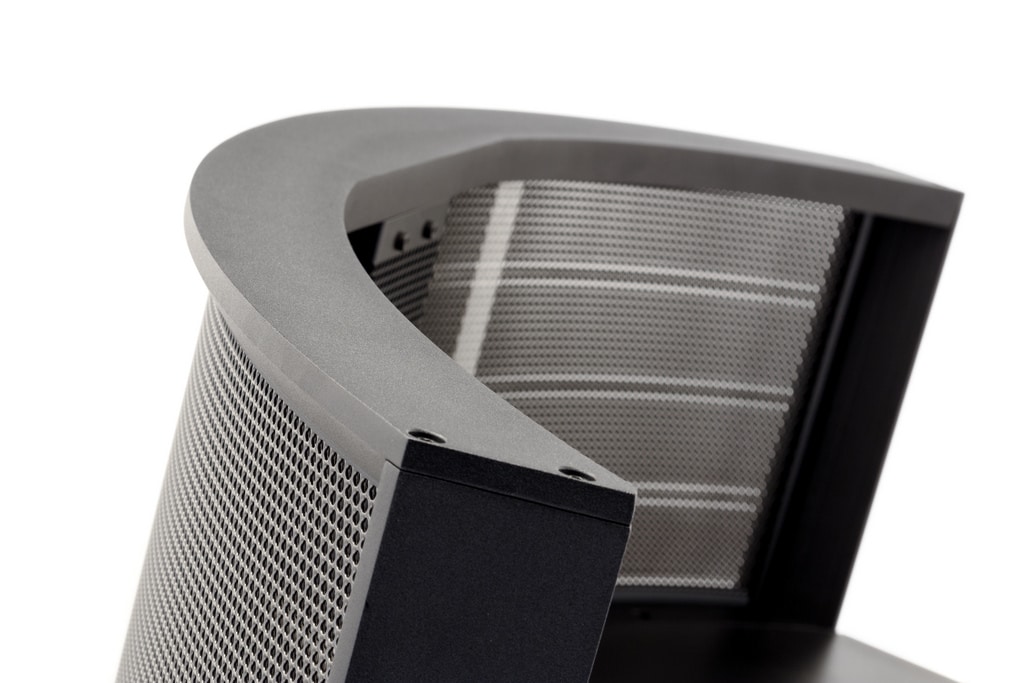

Patented CLS XStat electrostatic transducer
|
|
» Panel Dimensions
|
8″” × 34.5″” (20.3 × 87.6cm)
|
|
» Radiating Area
|
276 in2 (1,778 cm2)
|
|
Low Frequency Transducer
|

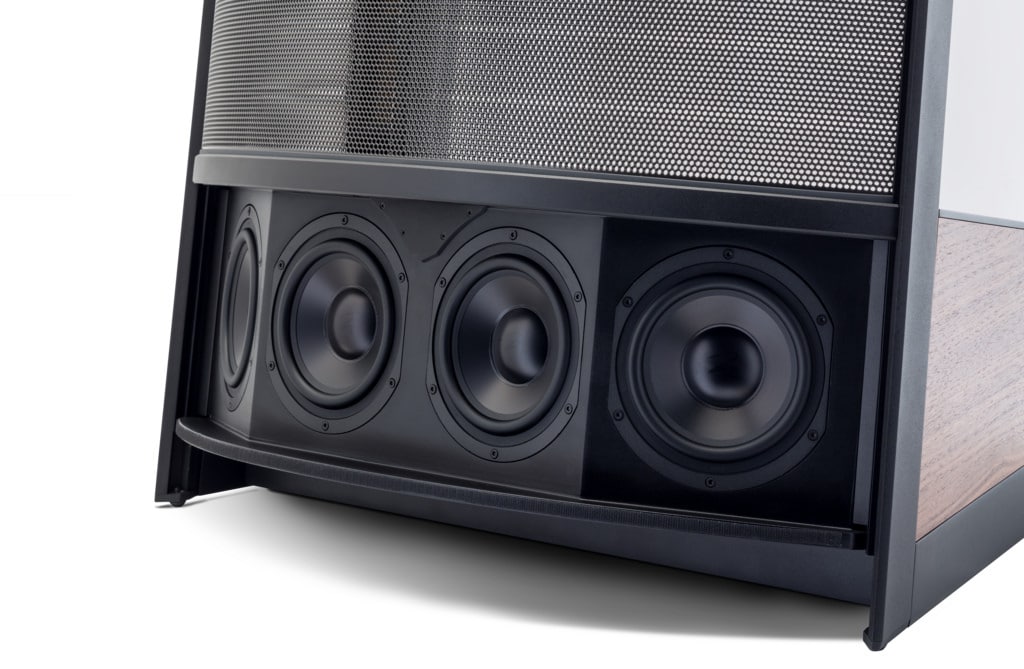

Four 6.5″” (16.5cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format.
|
|
Room Correction (Bass Section)
|
Anthem Room Correction (ARC) Ready (Sold Separately)
|
|
Amplifier
|
1x 250 watts/channel (4 ohms), 500 watts peak
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
6 Ohms . Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Recommended Amplifier Power
|
20?600 watts per channel
|
|
Crossover Frequency
|
500, 2000 Hz
|
|
Components
|
Custom-wound audio transformer, air core coils, polypro- pylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).
|
|
Audio Controls
|
Bass: ±10dB under 75Hz Mid-Bass: 2dB, 0dB, +2dB ARC Room EQ: On, Off
|
|

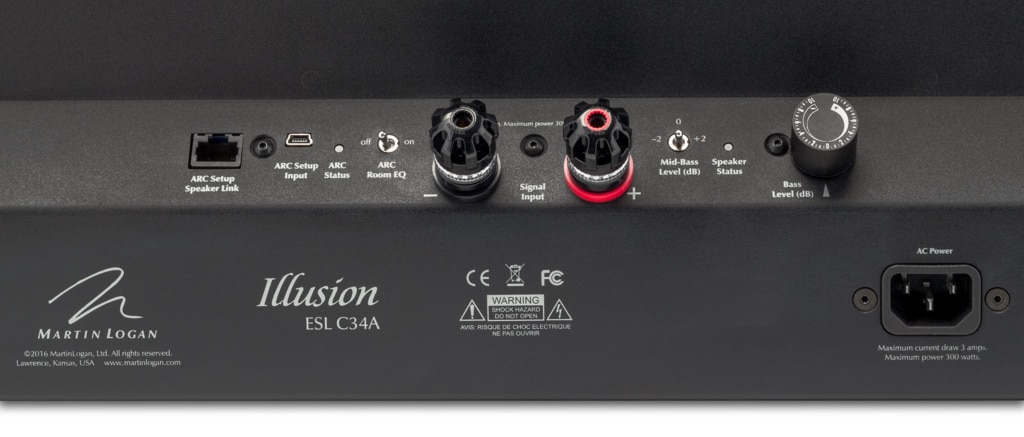

Signal Inputs
|
WBT-0703Cu nextgen 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
|
|
Inputs
|
AC Power, RJ45 (for ARC), mini USB (for ARC)
|
|
Power Draw
|
Max: 300W per channel Standby: <1W per channel
|
|
Weight
|
90 lbs. (40.9 kg)
|
|
Dimensions
|
23.75″” × 32.35″” × 23.1″”
|
